Lýsing

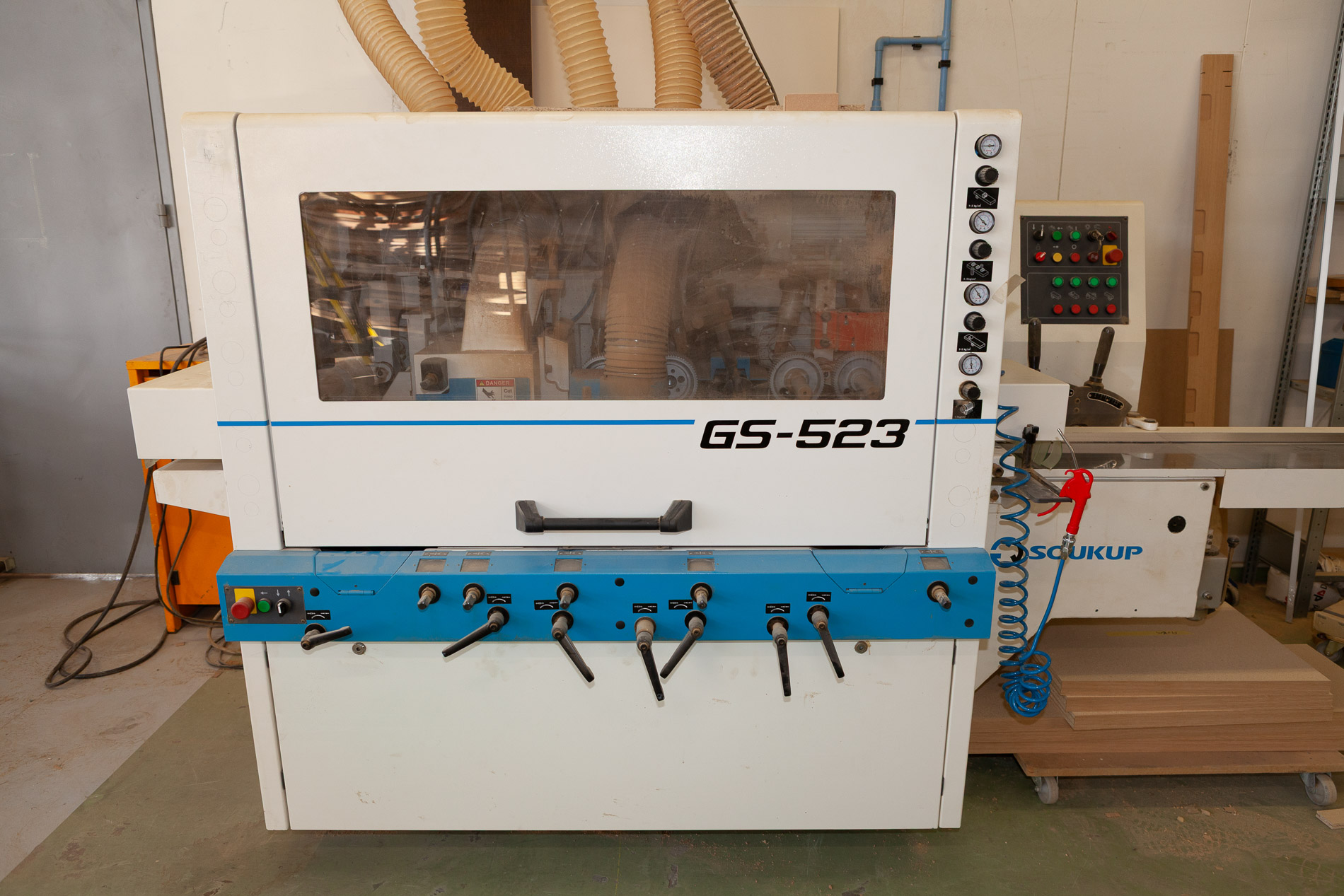

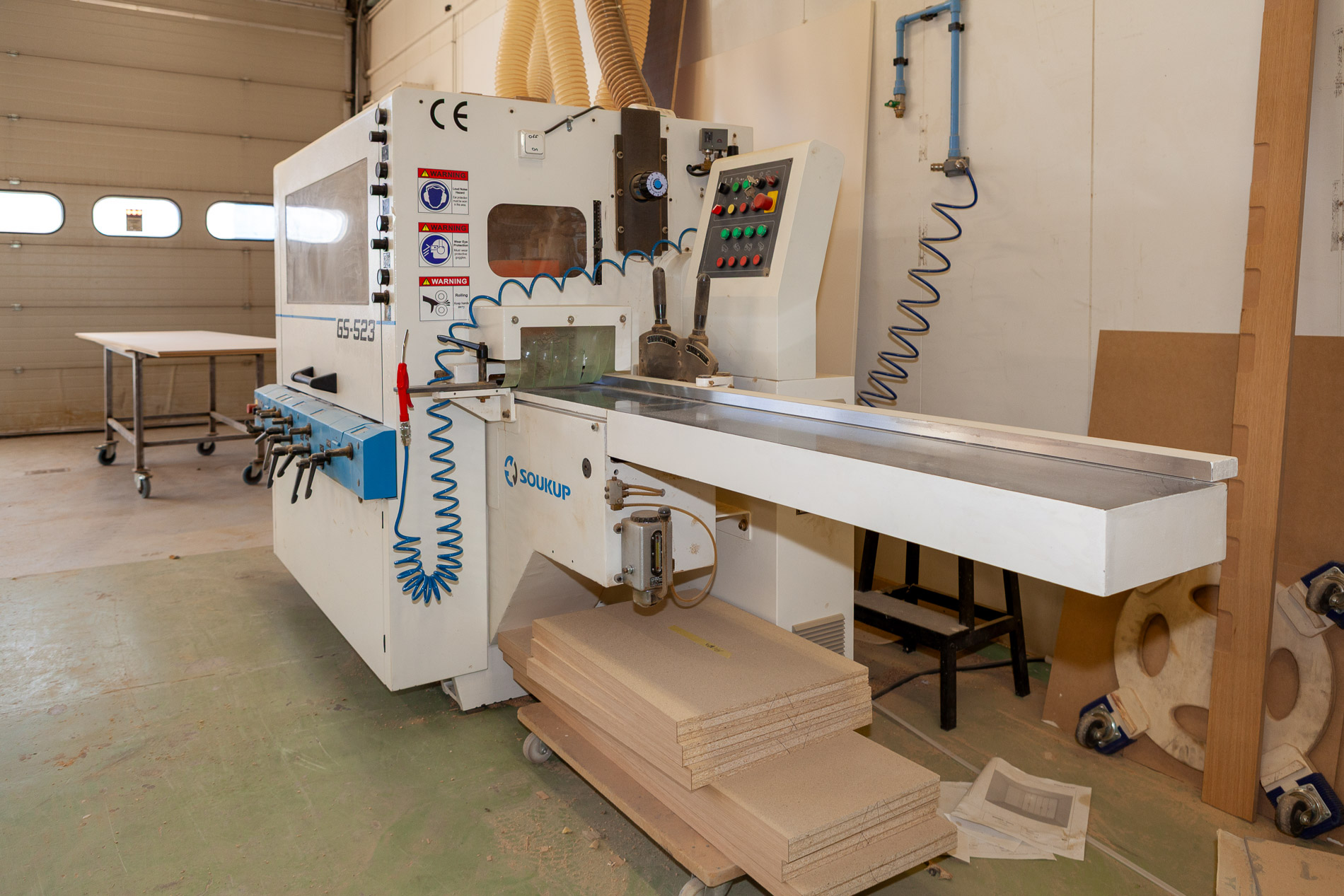

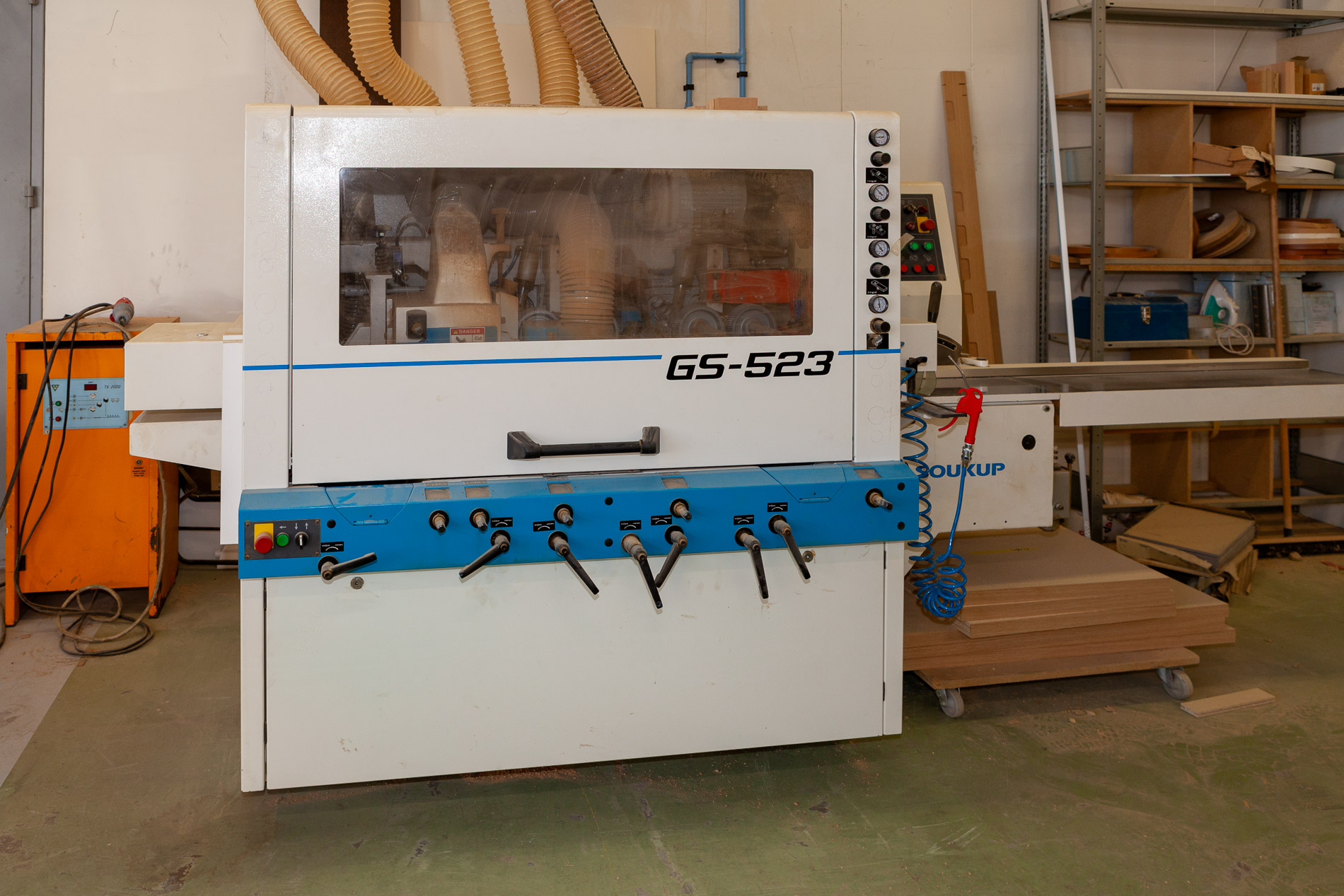

Soukup GS-523 fimm hausa fjórhefill (2023)

Verð kr. 5.500.000 + VSK



The machine is CE-certified and combines a robust construction with a comprehensive safety system. It is designed for quality, precision, and long-term reliability. All control levers for the spindles are positioned at the front for easy access and adjustment. A variable feed speed makes the machine suitable for all types of wood materials. A side pressure system on the left vertical spindle ensures smooth feeding even with shorter or narrower workpieces. The design incorporates many features typically found only in larger industrial machines.

Main Features
• Vertically and horizontally adjustable spindles
• Thickness spindle adjustable independently of the feed unit
• Digital readouts for spindle positioning
• Variable feed speed with steel and rubber feed rollers under pneumatic pressure
• Chrome-plated worktable surfaces for extended durability

Technical Specifications

• Specification Unit GS-523
• Working width mm 10 – 230
• Working height mm 7 – 125
• Motor (1st & 4th spindle) kW 5.5
• Motor (2nd & 3rd spindle) kW 7.5
• Motor (5th spindle) kW 5.5
• Motor for UNI spindle (U-series) kW 5.5
• Spindle speed rpm 6000
• Feed speed m/min 6 – 25
• Tool size – vertical spindles mm 100 – 180 × 130
• Tool size – 1st (bottom) spindle mm 100 – 150 × 240
• Tool size – 3rd (top) spindle mm 100 – 180 × 210
• Vertical spindle adjustment mm 0 – 30
• Horizontal spindle adjustment mm 0 – 20
• Infeed table length mm 2000
• Weight (GS-523) kg 2800
