Lýsing

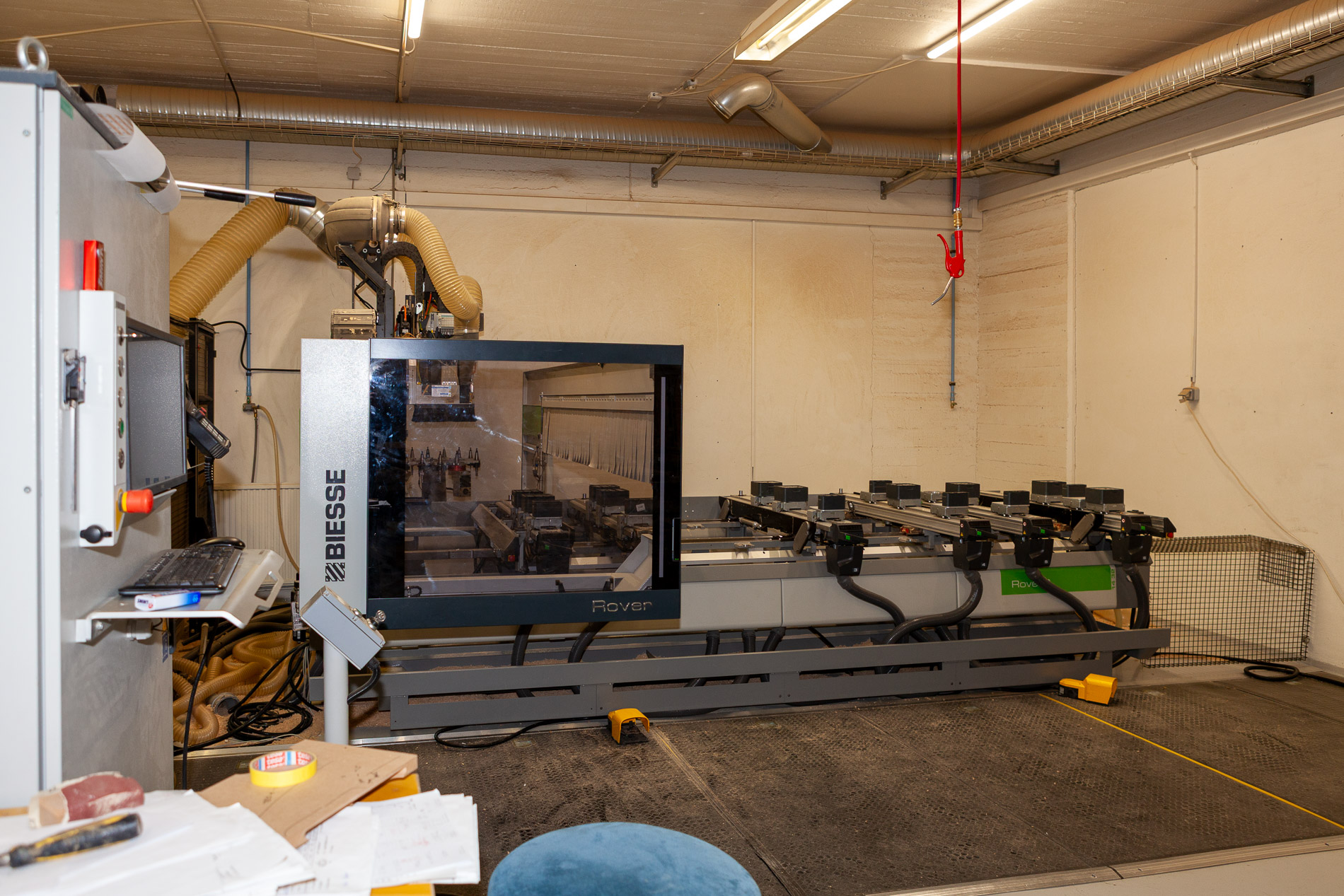

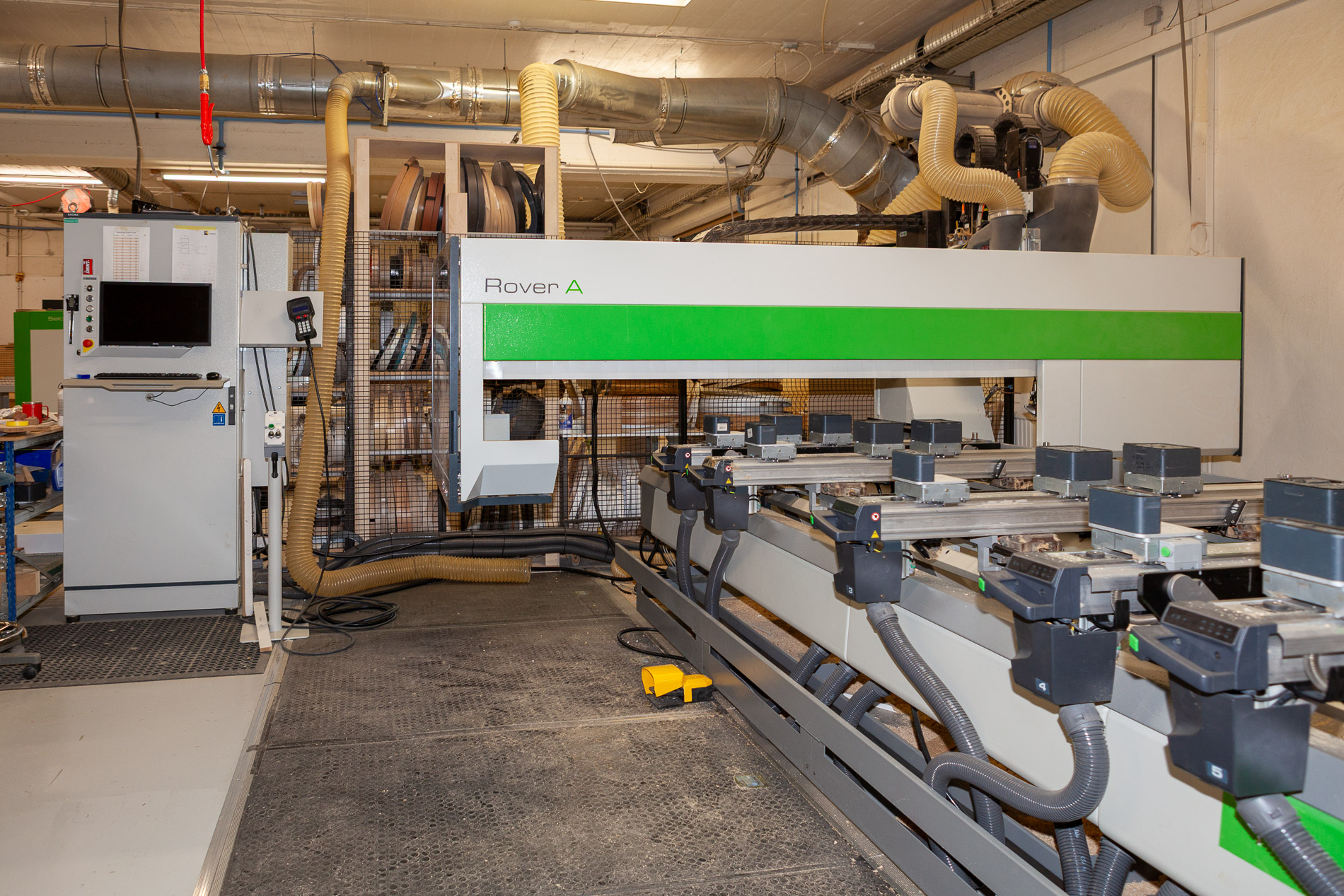

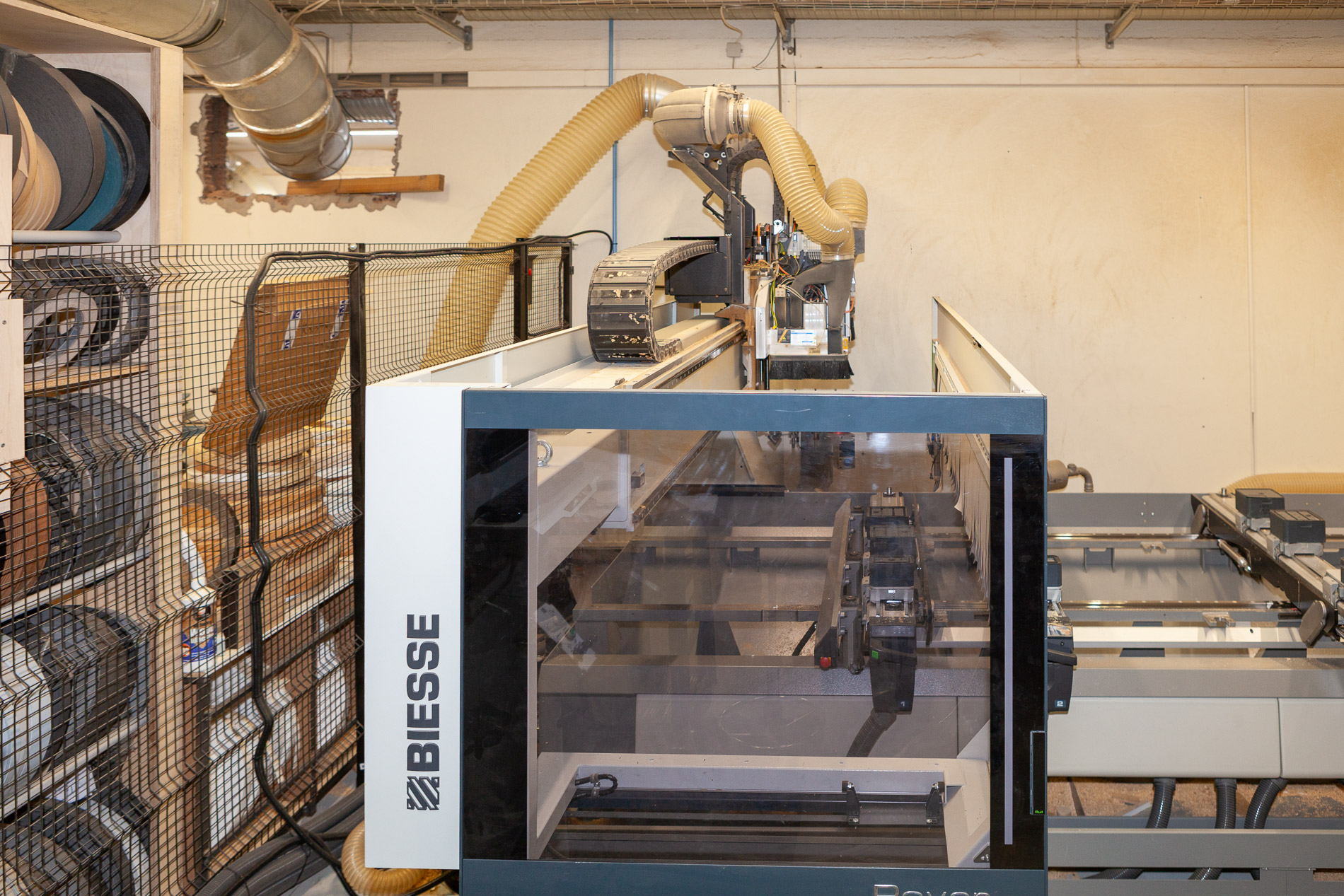

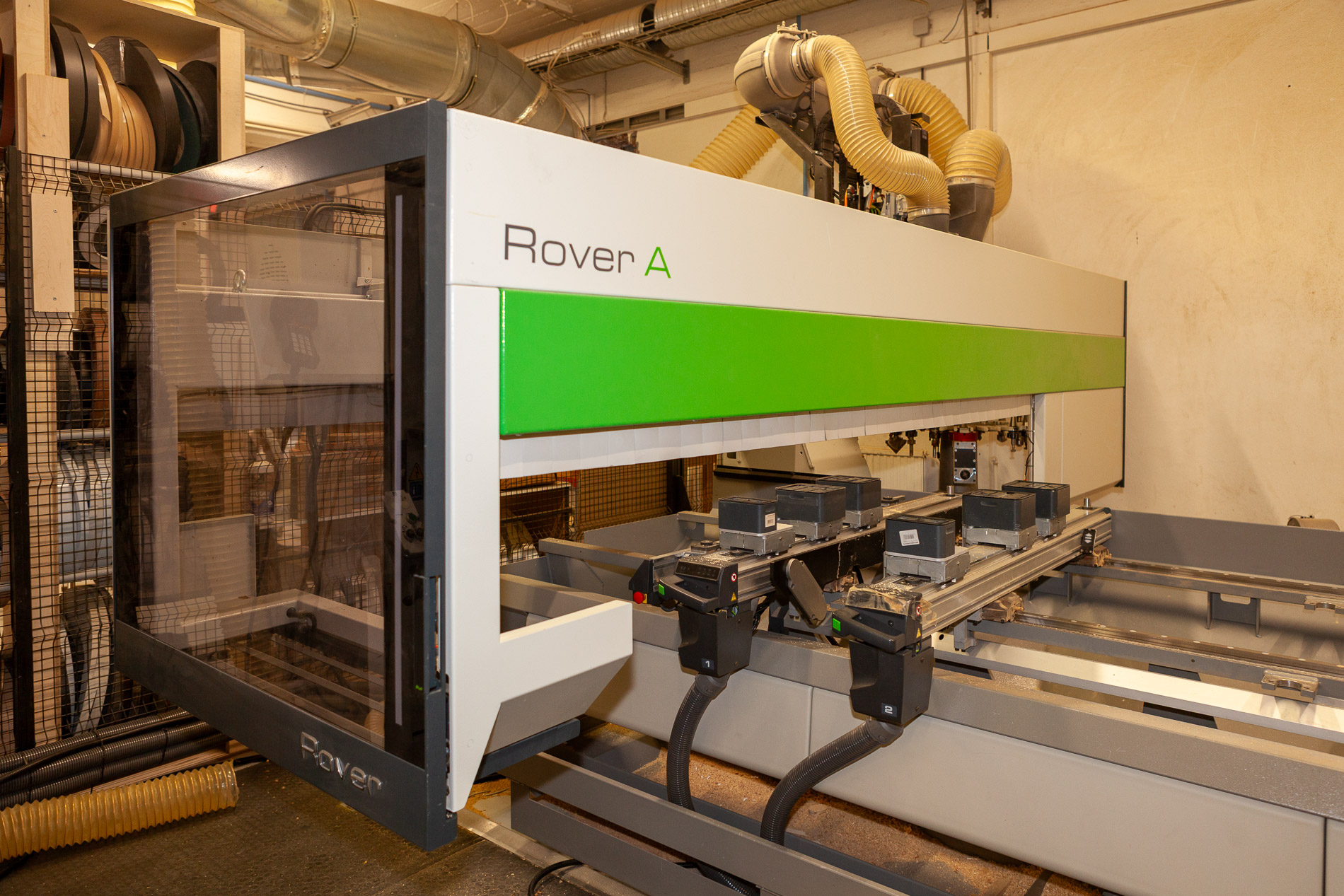

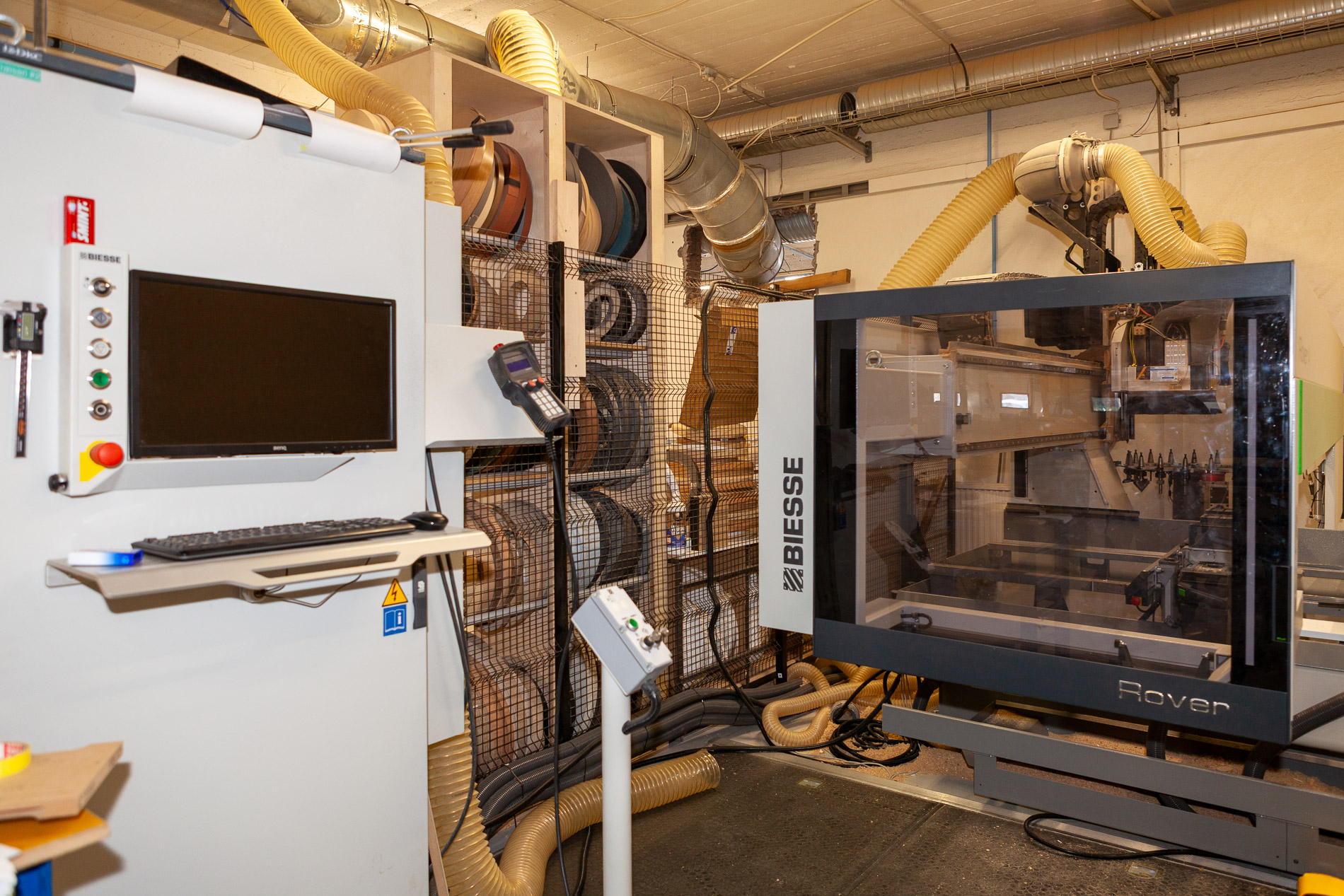

Biesse Rover A 1432

Árgerð 2016

Verð kr. 6.500.000 + VSK



• Working area: X = 3280 mm, Y = 1320 mm, Z = 225 mm
• 90 m³ vacuum pump, vacuum area divided into 2 zones along the X-axis

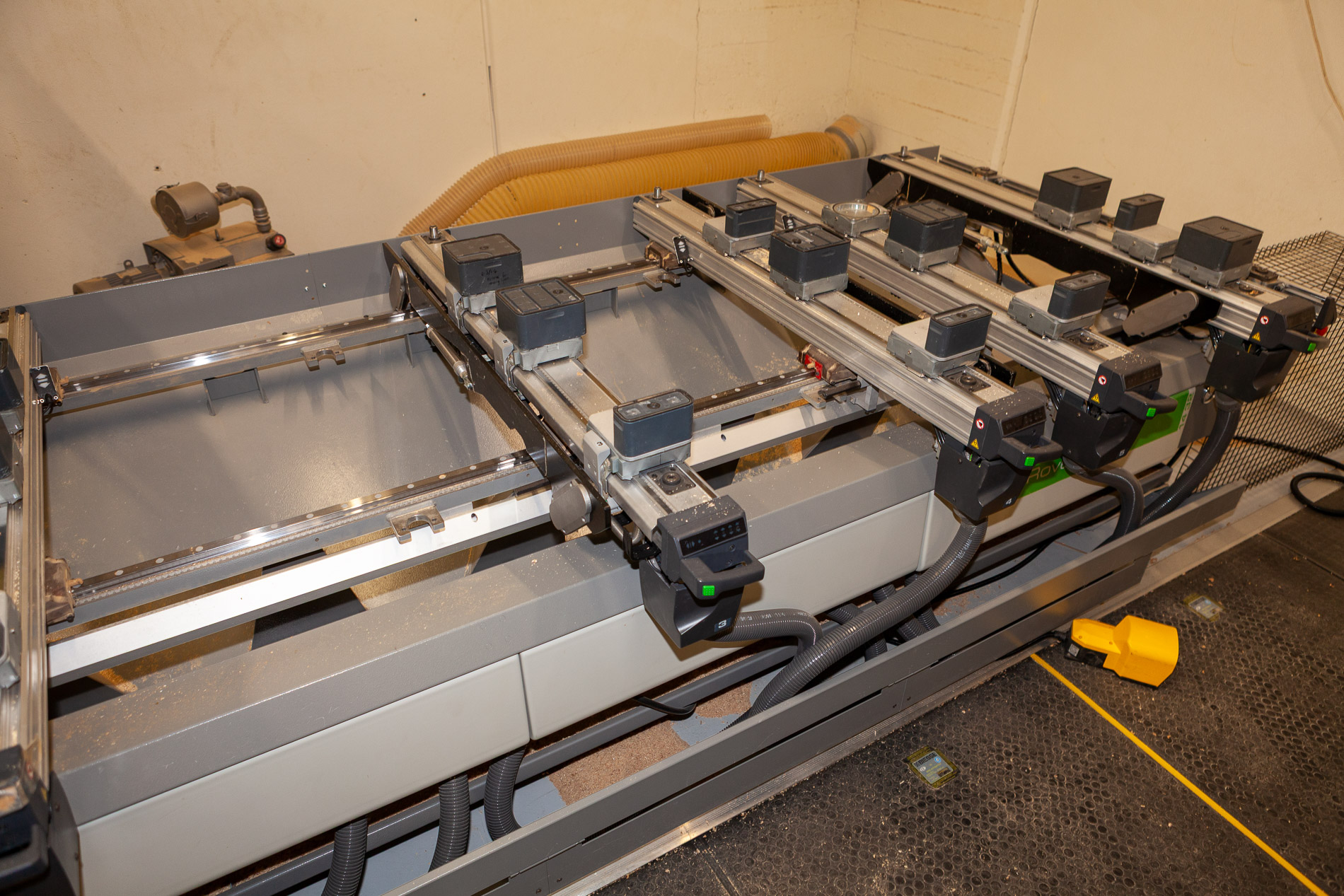

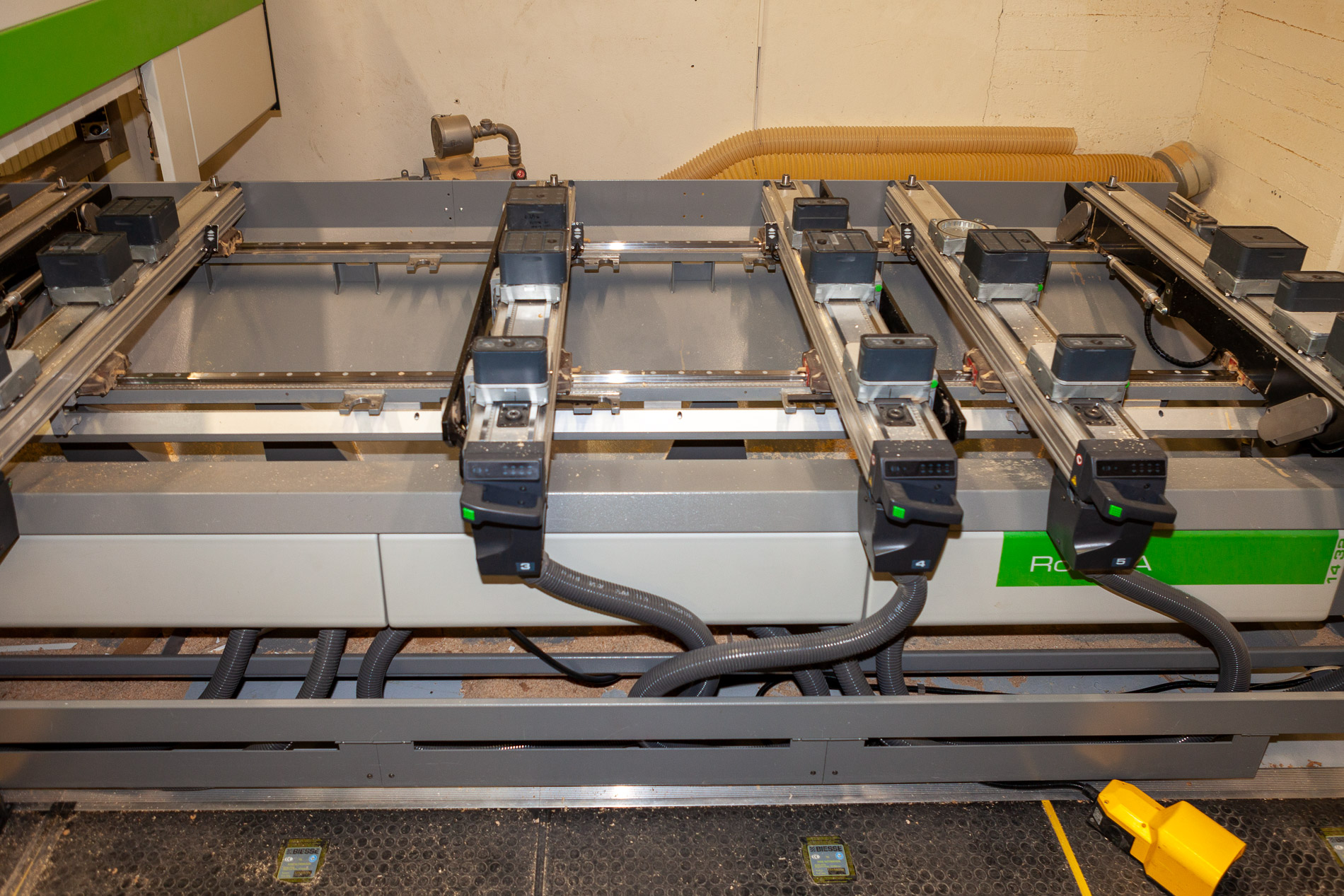

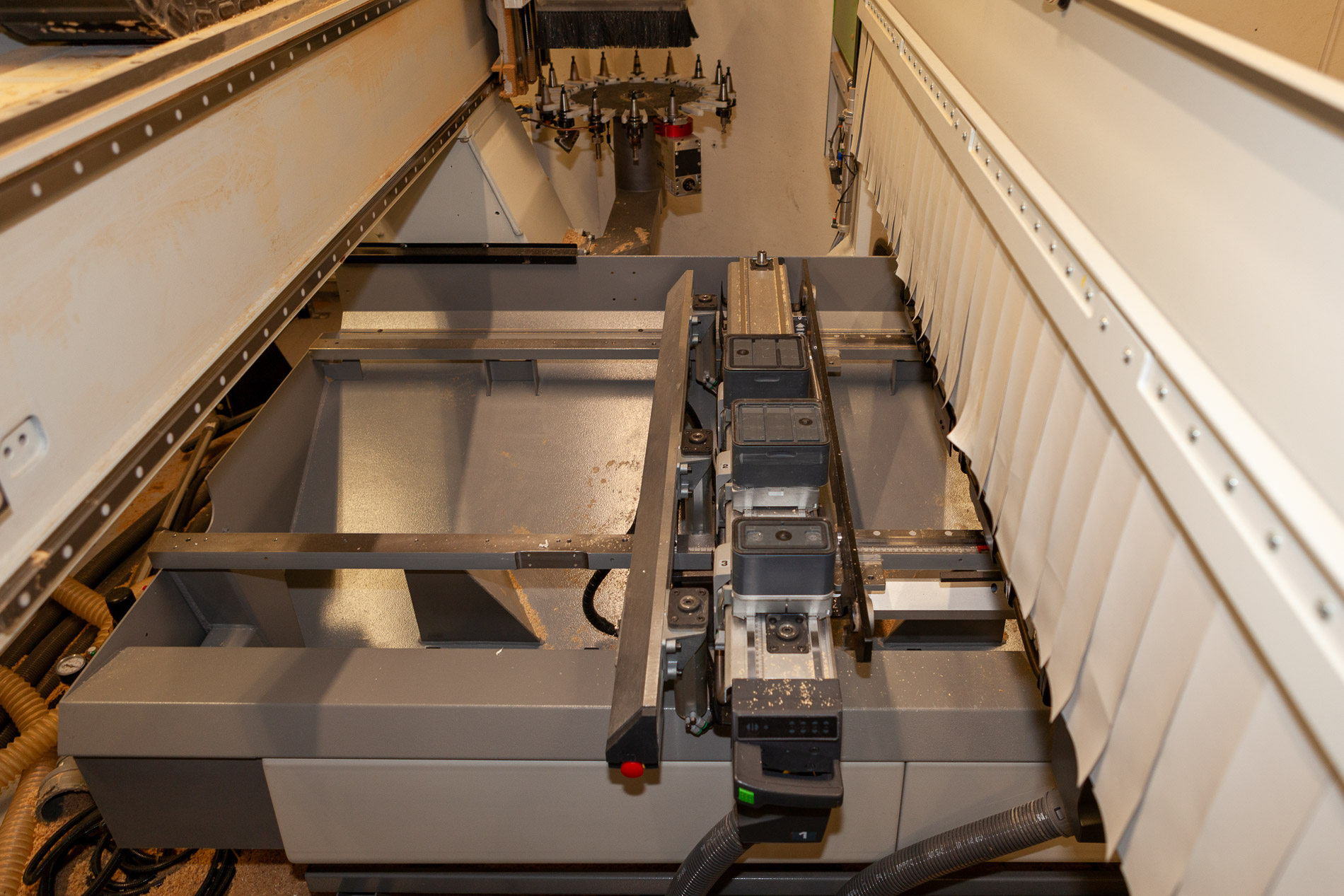

• 6 ATS rails with a total of 18 suction cups
• 2 stop rows – one at the rear and one at the front
• 6 side stops – 3 on the right and 3 on the left
• 4 hinged stops for workpieces with irregular edges
• 12 clamping pieces for securing narrow workpieces
• 4 lifting beams for handling heavier workpieces
• Air blow on milling spindle
• 17.7 HP ISO 30 milling spindle
• C-axis on the spindle (for rotating angle drives)

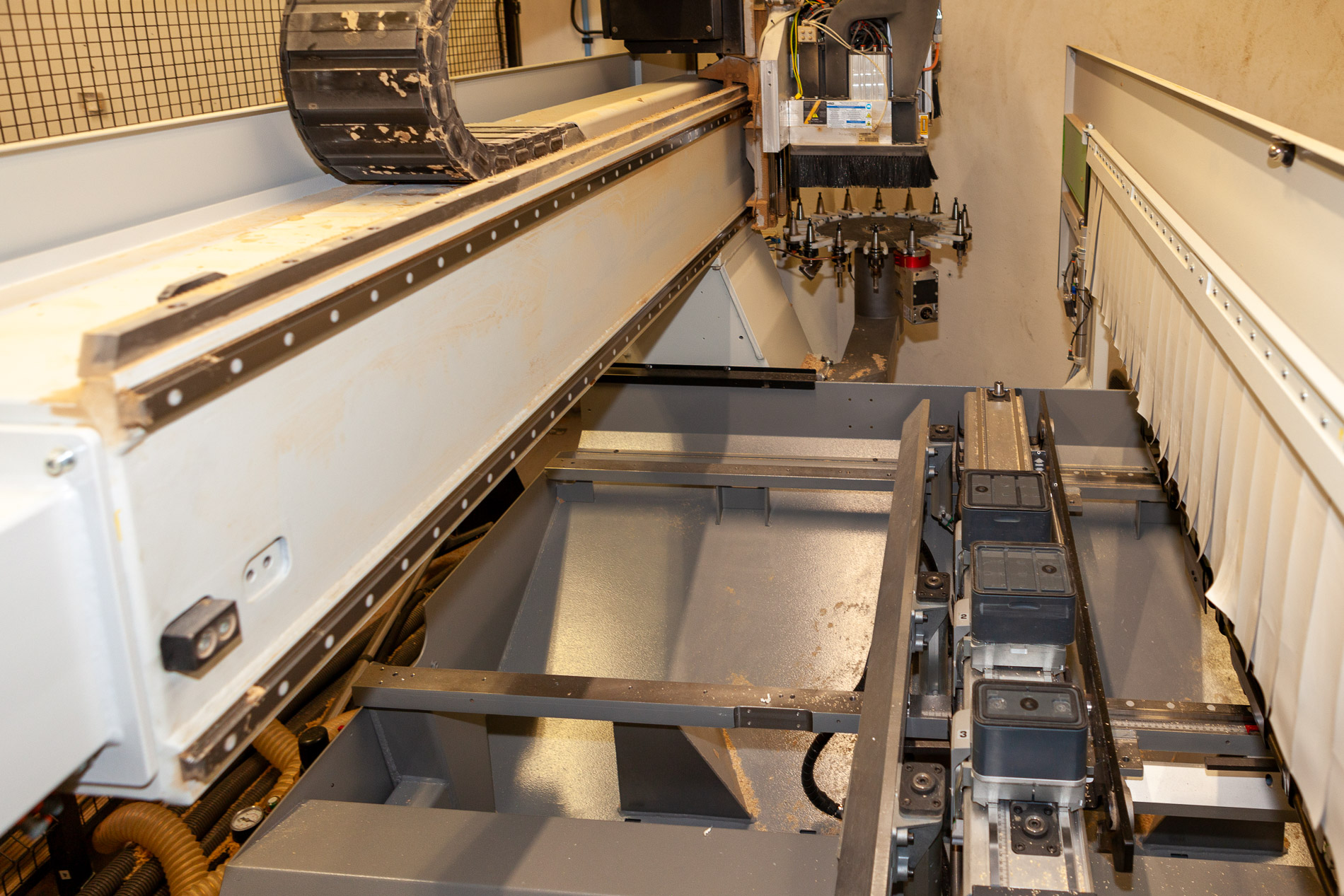

• 17-spindle boring head with independent Z-axis
• 16-tool magazine located at the rear of the machine (following the X-axis)
• Angle drive with two spindles, one aligned with the main spindle

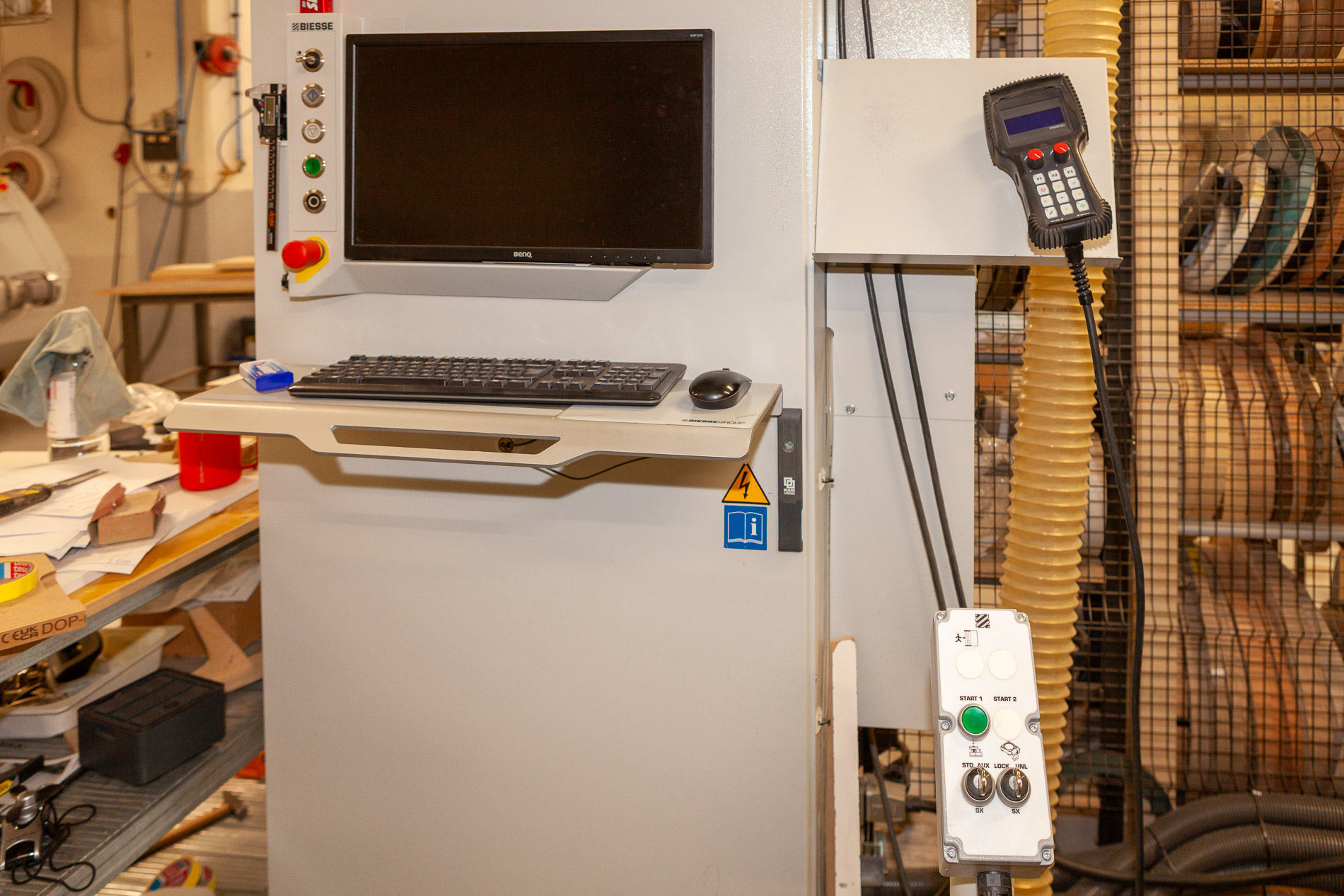

• Automatic lubrication systemRemote controlbSolid software – base modulebSolid software – additional license
• Safety equipment compliant with CE regulations
• Setup assistant
